Capacity
100-2500 t/h

Max. feed size
1400 mm

Primary feeding & scalping

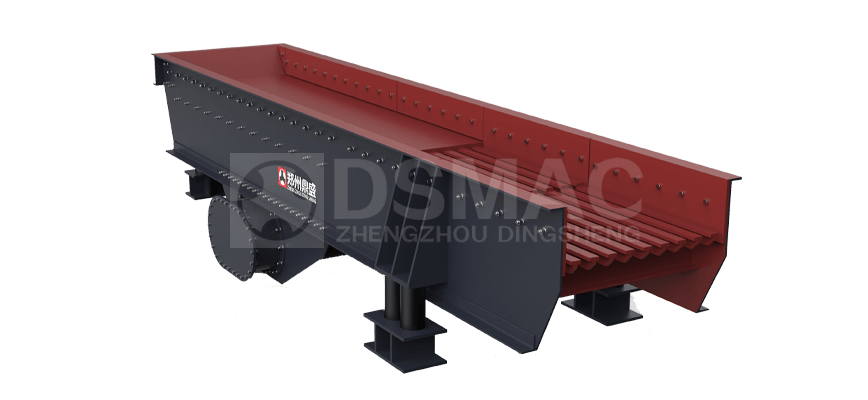

ZSW

VIBRATING FEEDER

Primary feeding, scalping applications in mining, aggregates, mineral processing, recycling and various industries

Simplicity, durability, stability

High scalping efficiency

Controllable flow rate through vibrator adjustment

Low noise and energy consumption

Optional full sealing system

Leave Message

Send E-mail contact@dscrusher.com

Overall Properties Technical Specifications PHOTO/VIDEOS CONTACT US

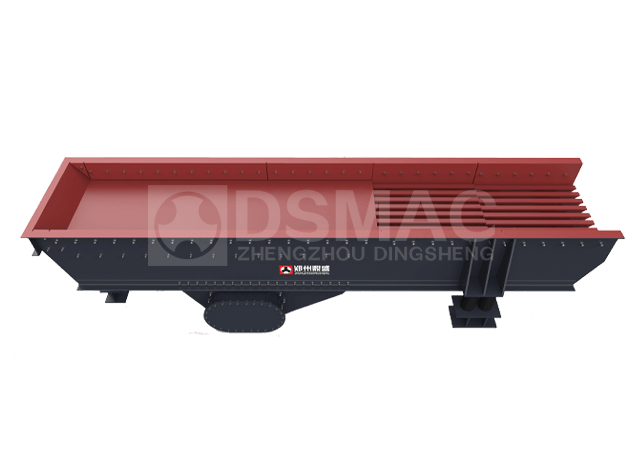

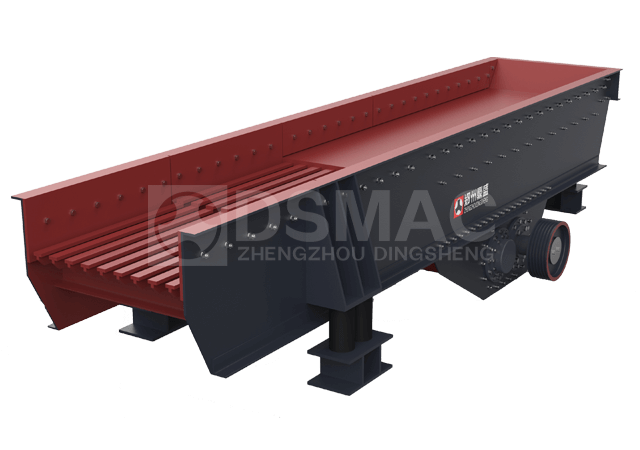

Overall Properties

The ZSW series vibrating feeder( grizzly feeder ) is mainly used for continuously and evenly feeding coarse crusher, screening fine aggregate, and thus enhances crusher capacity. When operated, the vibrating feeder can send massive and granular materials to the receiving device evenly, regularly and continuously.

The ZSW series vibrating feeder is engineered for the toughest conditions. Featuring scalping ability, the ZSW vibrating feeder can process flaky, abrasive ,material either in mobile or stationary installations.

Model	Inlet size (mm)	Inlet area (m2)	Feeding size (mm)	Capacity (t)	Vibrating frequency (rpm)	Power (kw)	Weight (t)
ZSW100	3025X876	2.65	380	100	800	7.5	2.3
ZSW150	3880X950	3.6	500	150	800	11	4
ZSW200	3736X970	3.6	500	200	800	11	4.4
ZSW250	4900X1124	5.5	600	250	750	15	4.9
ZSW300	5900X1100	6.5	650	300	750	22	6.4
ZSW500	6000X1500	7.8	1000	450	750	37	10.5
ZSW630	6000X2000	13.2	1000	630	750	45	10.7
ZSW1000	6000X2300	13.8	1100	1000	550-730	55	15.2
ZSW1500	6500X2600	16.8	1400	1500	550-730	75	19.5
