Capacity
20-1100 t/h

Max feeding size
1250 mm

Heavy duty feeding

BW

APRON FEEDER

Heavy duty feeding to primary crushing in cement plant. Applications in metallurgy, chemical, coal, power, building material and various industries

Durability, stability

Adjustable feed rate

Low noise and energy consumption

High bending strength chain

High toughness allowance

Adjustable conveying angle

Leave Message

Send E-mail contact@dscrusher.com

Overall Properties Technical Specifications PHOTO/VIDEOS CONTACT US

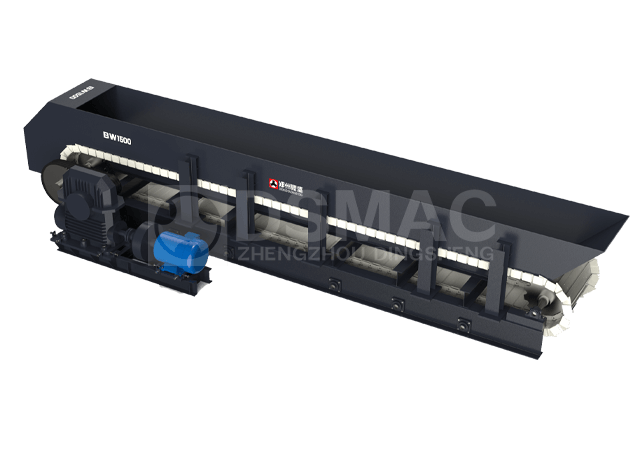

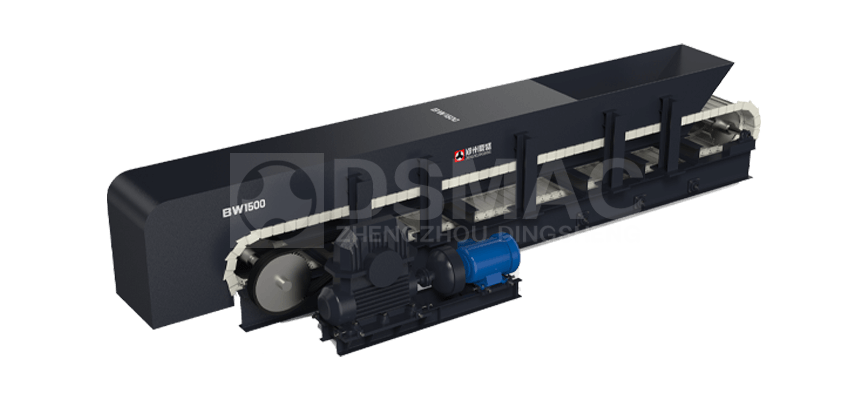

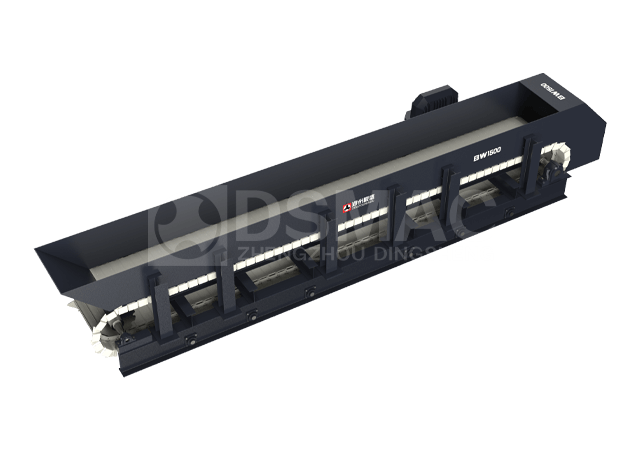

Overall Properties

The BW series apron feeder has an integral matching scraper conveyor with built-in drive to handle spillage. This system ensures an economic layout and increased belt conveyor length compared with the conventional system with spillage chute. The feeders are specially designed to minimize maintenance.

The BW series apron feeder is designed for the toughest heavy duty applications. High compressive strength, high toughness and corrosion resistance chain enables the BW series apron feeder to handle large, sharp edged and corrosive material.

Type	Model	Width (mm)	Inclination (°)	Capacity (t/h)	Transporting speed (m/s)	Max. feed size (mm)	Power (kw)	Weight (t)
Medium	BWL1000×3000	1000	0	200-250	0.02-0.27	≤400	11	8
	BWL1000×4000		0	30-140	0.02-0.19	≤600	15	9.5
	BWL1000×10000		23	30-150	0.02-0.15	≤500	18.5	17.2
	BWL1200X8500	1200	0	30-150	0.03-0.15	≤150	15	15.6
	BWL1200X10710	1200	20	30-150	0.03-0.15	≤150	18.5	18.6
	BWL1250×3500	1250	0	40-400	0.02-0.27	≤650	11	9.2
	BWL1250×4750		0	300-350	0.02-0.27	≤150	15	10.5
	BWL1250×12000		5	20-100	0.015-0.15	≤600	18.5	17.5
	BWL1250×14000		0	30-300	0.03-0.15	≤500	22	22.5
	BWL1250×10080		20	100-200	0.03-0.15	≤600	18.5	16.9
	BWL1400×6000	1400	0	30-300	0.02-0.11	≤600	15	12.9
	BWL1500X9000	1500	20	40-400	0.03-0.15	≤500	45	18.5
	BWL1600X4750	1600	0	30-150	0.03-0.2	≤500	45	12.1
Heavy	BWZ1250×9000	1250	15	30-300	0.01-0.14	≤600	30	37.5
	BWZ1250×9000	1250	0	30-300	0.01-0.14	≤600	18.5	24.3
	BWZ1500×8000	1500	20	30-850	0.02-0.2	≤800	45	36.6
	BWZ1800×10000	1800	20	30-600	0.03-0.2	≤800	37	47
	BWZ2200X10000	2200	23	200-1100	0.02-0.142	≤1000	55	83
	BWZ2300X10000	2300	23	200-1100	0.02-0.142	≤1250	55	85
