Capacity
5-400t/h

Max feeding size
600mm

Crushing and grinding

PG

DOUBLE ROLLER CRUSHER

Raw material: Limestone, coal, cement, iron ore, carbide slag, sandstone, gangue

Optional flat and toothed roller types

High reduction ratio

Low noise emission

Homogeneous product without over grinding

Easy to maintain

Overload protection

Leave Message

Send E-mail contact@dscrusher.com

Overall Properties Technical Specifications PHOTO/VIDEOS CONTACT US

Overall Properties

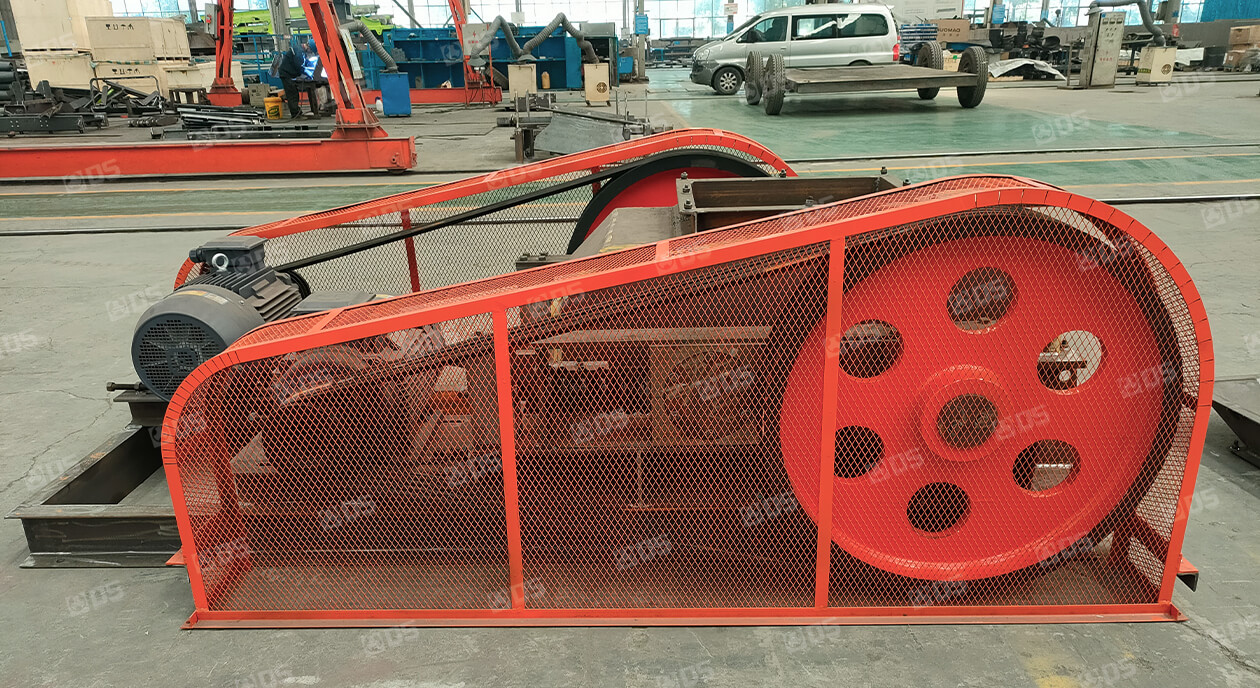

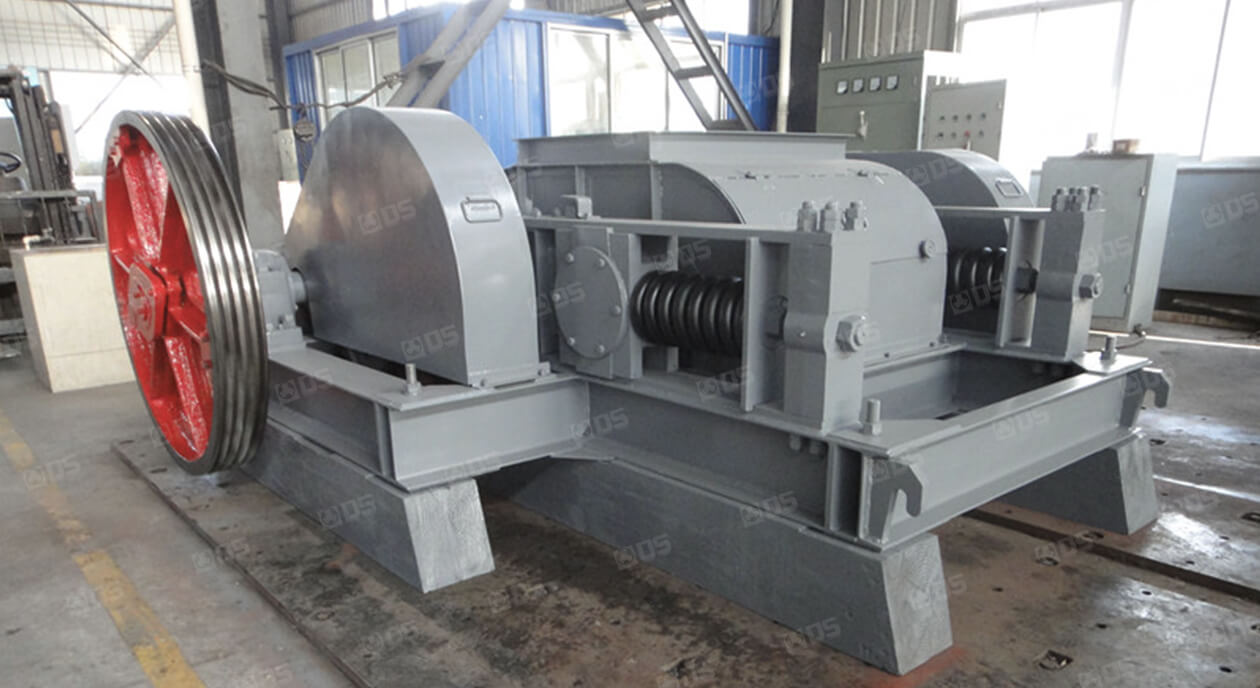

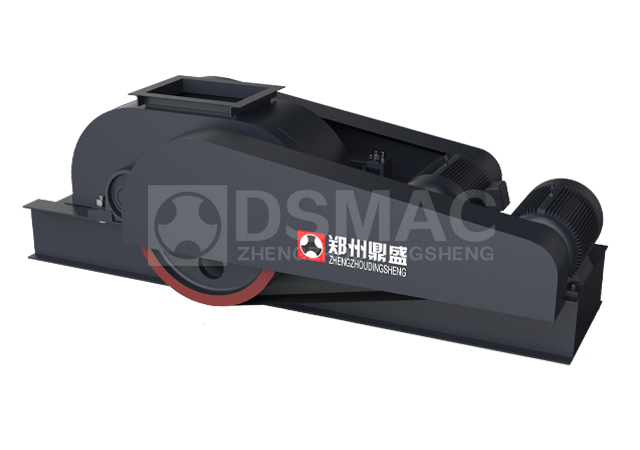

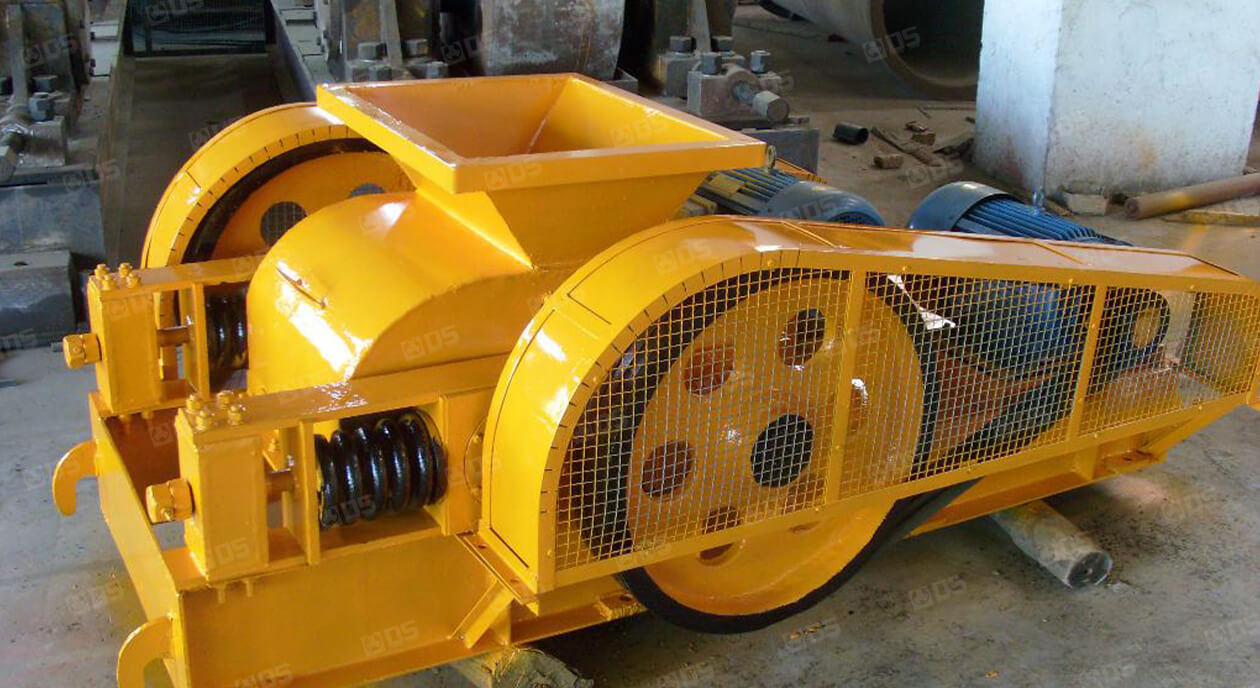

The PG series double roller crusher is a new type crusher absorbing foreign advanced technology to be developed on the basis of China's national conditions. It is mainly used for crushing coke, also suitable for crushing coal and other materials with similar hardness.

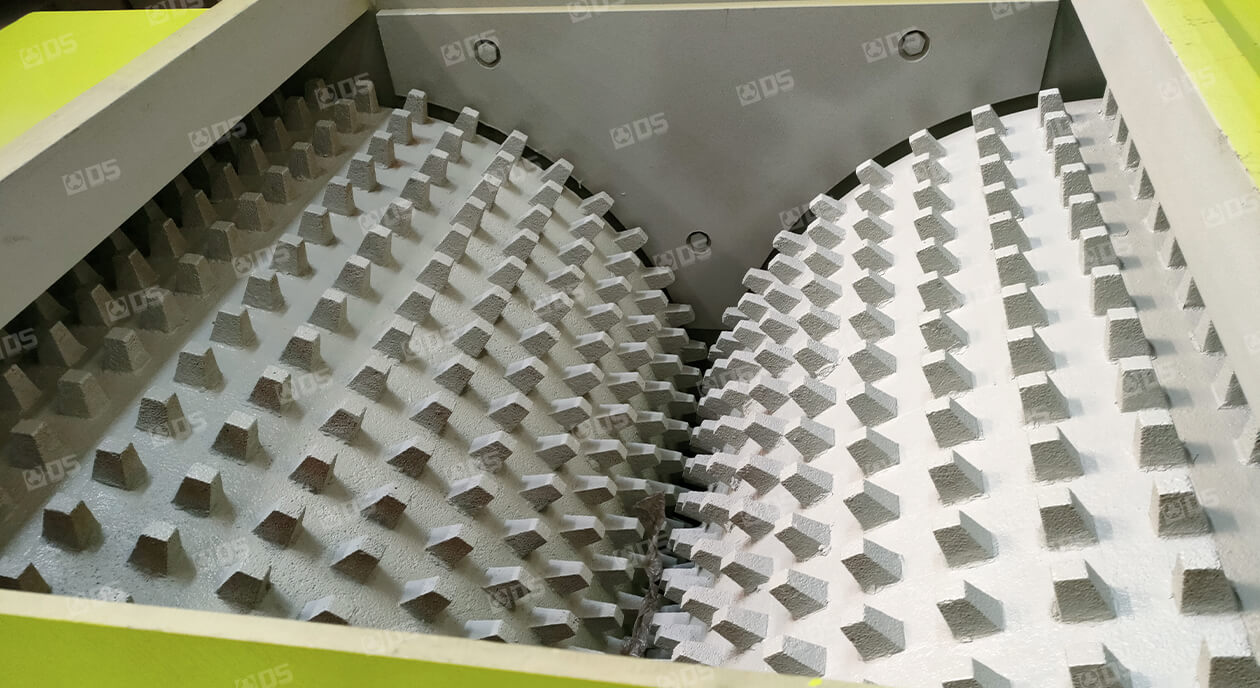

The PG series double roller crusher is designed with option of toothed roller and high wear resistant flat roller where flat roller type is suitable for hard and medium hard material application and the toothed type works for brittle of soft material.

Type	Model	Rotor diameter and length (mm)	Max. feed size (mm)	Discharging size (mm)	Capacity (t/h)	Rotating speed (rpm)	Power (kw)	Weight (t)
Toothed Roller	2PGC0405	Φ450X450	200	0-50	20-55	64	2X5.5	3.4
	2PGC0607	Φ600X750	300		60-125	64	2X11	7.23
	2PGC0909	Φ900X900	300		125-180	65.5	2X30	13.8
	2PGC0912	Φ900X1200	300		130-200	65.5	2X45	18
	2PGC1212	Φ1260X1220	500	0-100	150-250	110	2X75	30
	2PGC1215	Φ1260X1500	500		180-300	110	2X90	36.6
	2PGC1414	Φ1400X1400	600		200-400	125	2X110	44
Flat Roller	2PG0402	Φ400X250	25	1-8	5-10	200	2X15	1.5
	2PG0604	Φ610X400	40	2-20	13-35	120	2X37	4.5
	2PG0705	Φ750X500	50	2-25	20-50	120	2X55	12.2
	2PG1008	Φ1000X800	60	3-25	35-70	100	2X75	22
	2PG1208	Φ1200X800	60	3-30	70-120	110	2X90	27
	2PG1510	Φ1500X1000	70	3-30	120-200	110	2X160	36.2
