Capacity
100-2000 t/h

Max feeding size
2000 mm

Primary crushing application

JC

EUROPEAN JAW CRUSHER

Raw material: Granite, limestone, basalt, shale, pebbles, bluestone, sandstone, carbide, iron ore, copper ore, steel slag, manganese ore, andesite, quartz, silica, gypsum, volcanic rock, marble, river stone, gravel, coal etc..

Increased intake capacity

High uptime

Space saving

High reduction ratio

Less and simple maintenance

Leave Message

Send E-mail contact@dscrusher.com

Overall Properties Technical Specifications PHOTO/VIDEOS CONTACT US

Overall Properties

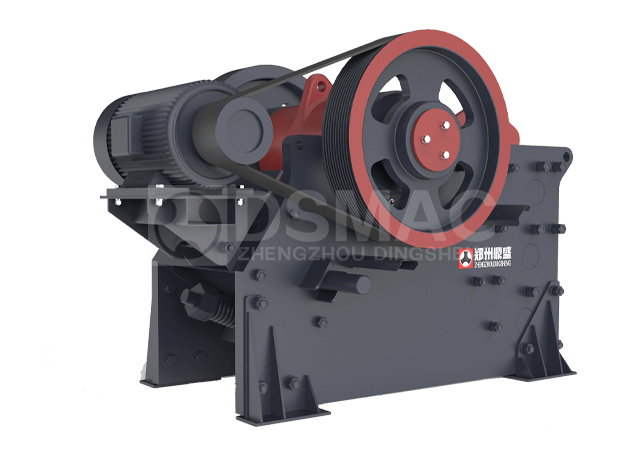

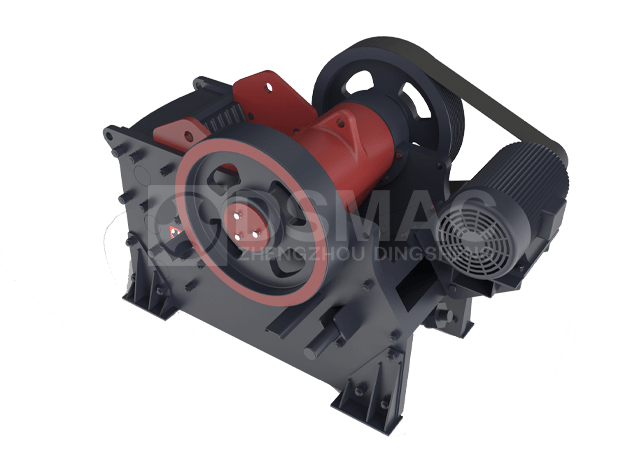

The JC series European jaw crusher is built in line with the most advanced Austrian style crusher technology. With bolted construction, the outstanding design provides the toughest fatigue strength and easy to be transported.

The steep cavity boosts the reduction ratio of the feed materials. The JC series European jaw crusher are proven for primary crushing applications in extreme hard material condition in mining, quarrying, industrial mineral processing, and recycling reinforced concrete.

Model	Capacity	Inlet size	Outlet size	Power	Weight
Model	(t/h)	(mm)	(mm)	(kw)	(t)
JC800	50-250	510×800	40-175	75	8.1
JC900	85-300	580×930	60-175	90	10.7
JC1060	120-400	700×1060	70-200	110	16
JC1150	130-420	760×1150	70-200	132	21
JC1200	140-510	870×1200	70-175	160	30.7
JC1300	210-630	1000×1300	100-250	185	42
JC1400	250-580	1070×1400	125-250	200	52.1
JC1500	270-670	1200×1400	125-250	200	56
JC1600	350-900	1200×1600	150-300	250	78
JC2000	600-1400	1500×2000	175-300	400	132
