MS

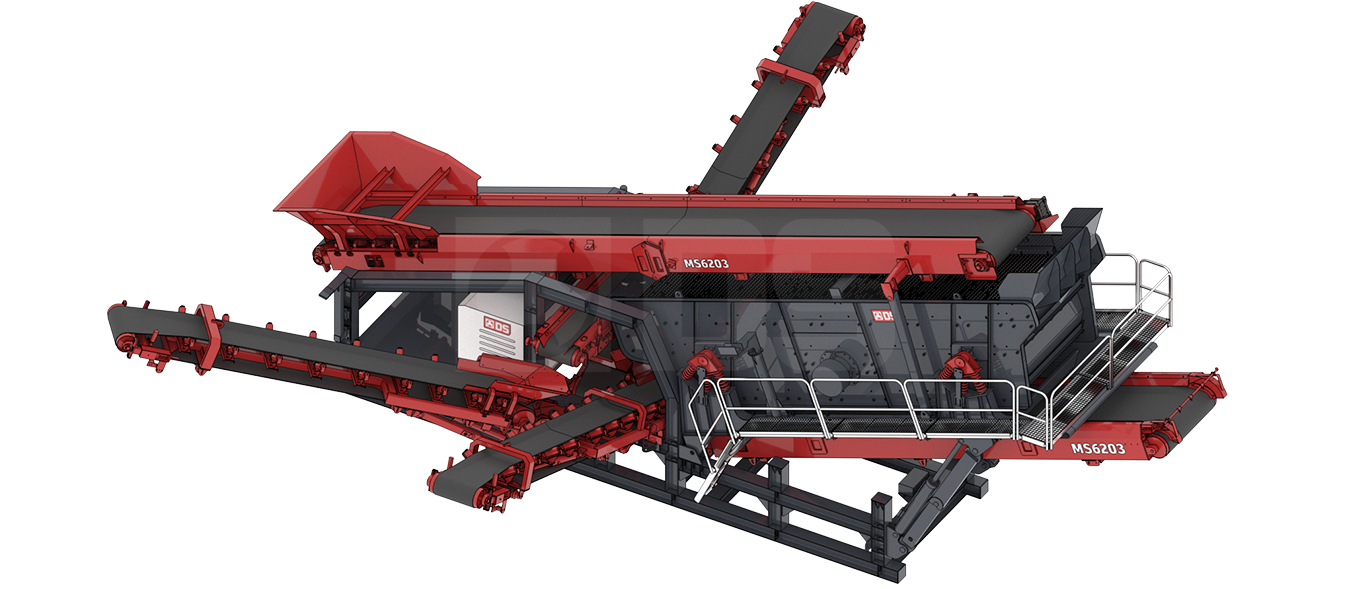

MODULAR SCREEN PLANT

MODULAR SCREEN PLANT
Capacity
320tph
Max. feed size
100mm
Adjustable angle
Overall Properties
Modular equipment is structurally compact, easy to transport, can be installed and moved as a whole and no need for civil engineering.

According to the customer’s needs and the functional requirements, different functions can be flexibly configured, and each module can work independently or in conjunction with each other to form a system.

Compared with traditional stationary production line, modular equipment reduces land occupation, reduces civil construction costs, has less on-site installation workload, short installation period, and can be put into production quickly.

Model MS6203 MS7203 MH6203
Capacity (T/H) ≤200 ≤320 ≤320
Feed size (MM) ≤100 ≤100 ≤100
Unit weight (T) 24 27 28
Screen AS6203 AS7203 HS6203
Deck Size(W*L)(mm) 6,000 X 1,800 6,000 X 2,200 6,000 X 1,800
Power rating (kw) 2 X 9 2 X 12 37
