MV

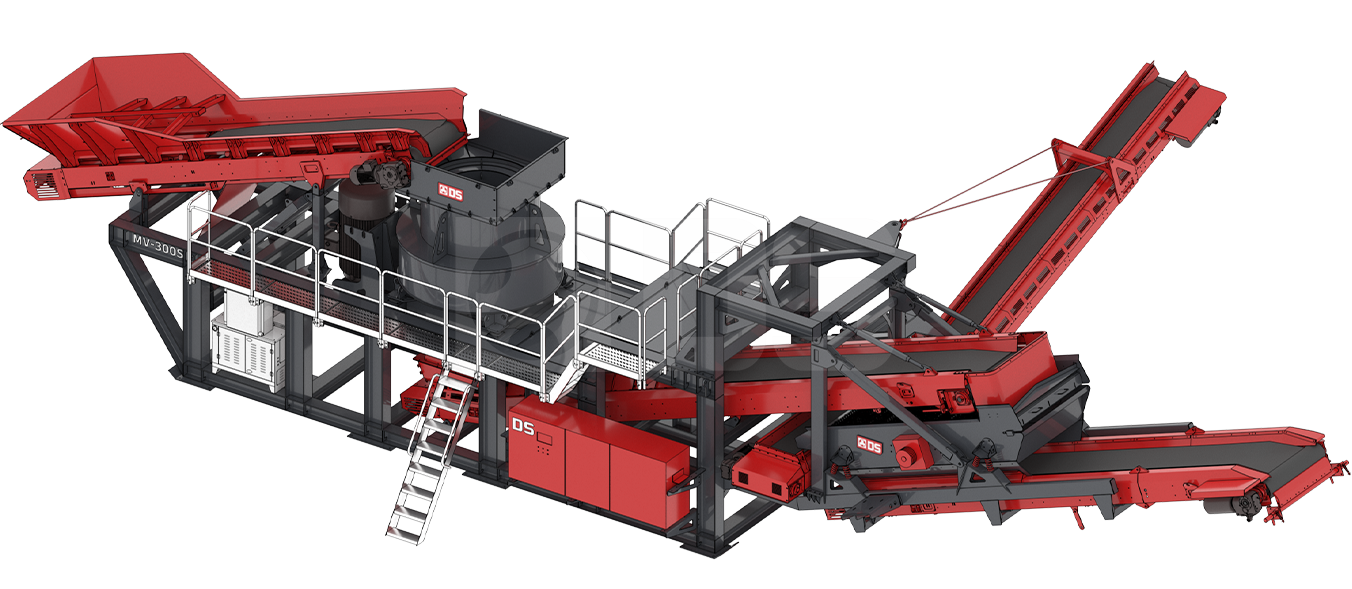

MODULAR SAND MAKING PLANT

MODULAR SAND MAKING PLANT
Capacity
500tph
Max. feed size
55mm
Rock-on-Rock Crushing Principle
Overall Properties
Modular equipment is structurally compact, easy to transport, can be installed and moved as a whole and no need for civil engineering.

According to the customer’s needs and the functional requirements, different functions can be flexibly configured, and each module can work independently or in conjunction with each other to form a system.

Compared with traditional stationary production line, modular equipment reduces land occupation, reduces civil construction costs, has less on-site installation workload, short installation period, and can be put into production quickly.


Model MV200 MV300
Capacity (T/H) ≤250 ≤500
Feed size (MM) ≤45 ≤55
Power rating (kw) 239.5-379.5 392.5-702.5
Unit weight (T) 46 50
VSI crusher V200 V300
Inlet size (MM)  40 50
Installed power(kw) 180 - 320 320 - 630
