MF

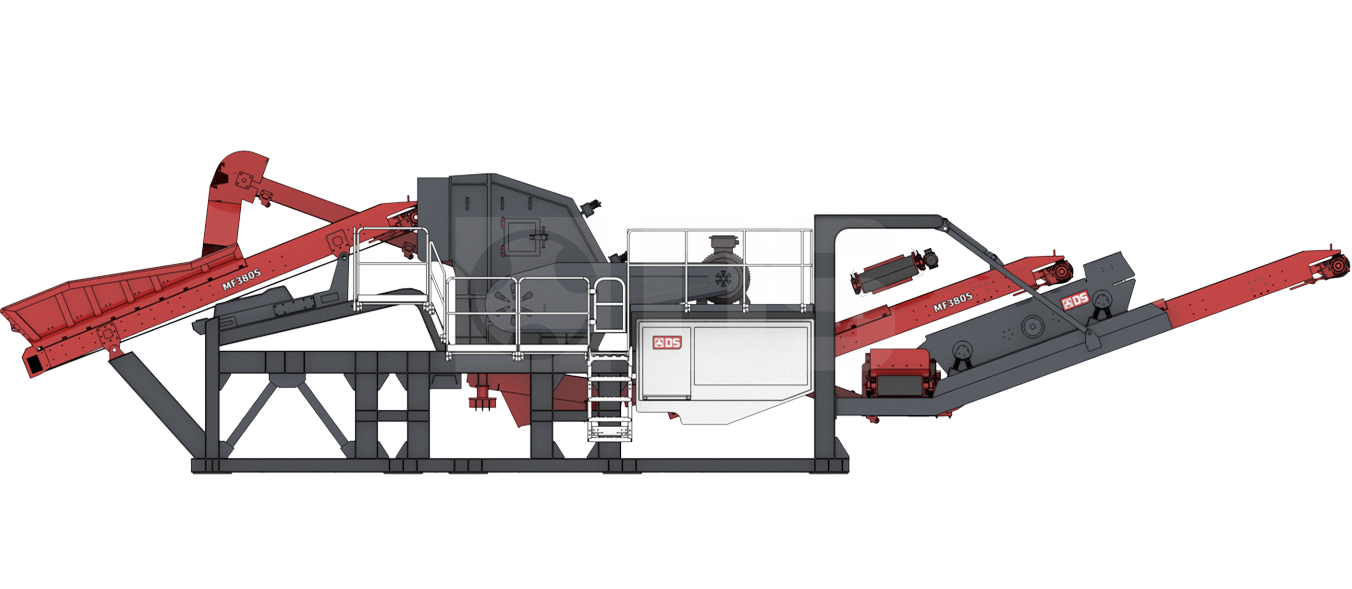

MODULAR IMPACT PLANT

MODULAR IMPACT PLANT
Capacity
400tph
Max. feed size
700mm
Compact Structure
Overall Properties
Modular equipment is structurally compact, easy to transport, can be installed and moved as a whole and no need for civil engineering.

According to the customer’s needs and the functional requirements, different functions can be flexibly configured, and each module can work independently or in conjunction with each other to form a system.

Compared with traditional stationary production line, modular equipment reduces land occupation, reduces civil construction costs, has less on-site installation workload, short installation period, and can be put into production quickly.


Model MF270S MF380S MF430S MF540S
Capacity (T/H) ≤150 ≤250 ≤300 ≤400
Feed size (MM) ≤400 ≤600 ≤600 ≤800
Unit weight (T) 32 36 41 55
Impact crusher AF270 AF380 AF430 AF540
Inlet size (W*H)(mm) 1170X790 1,430 X 950 1,630 X 950 1,740 X1251
Power rating(kw) 200 280 315 400
