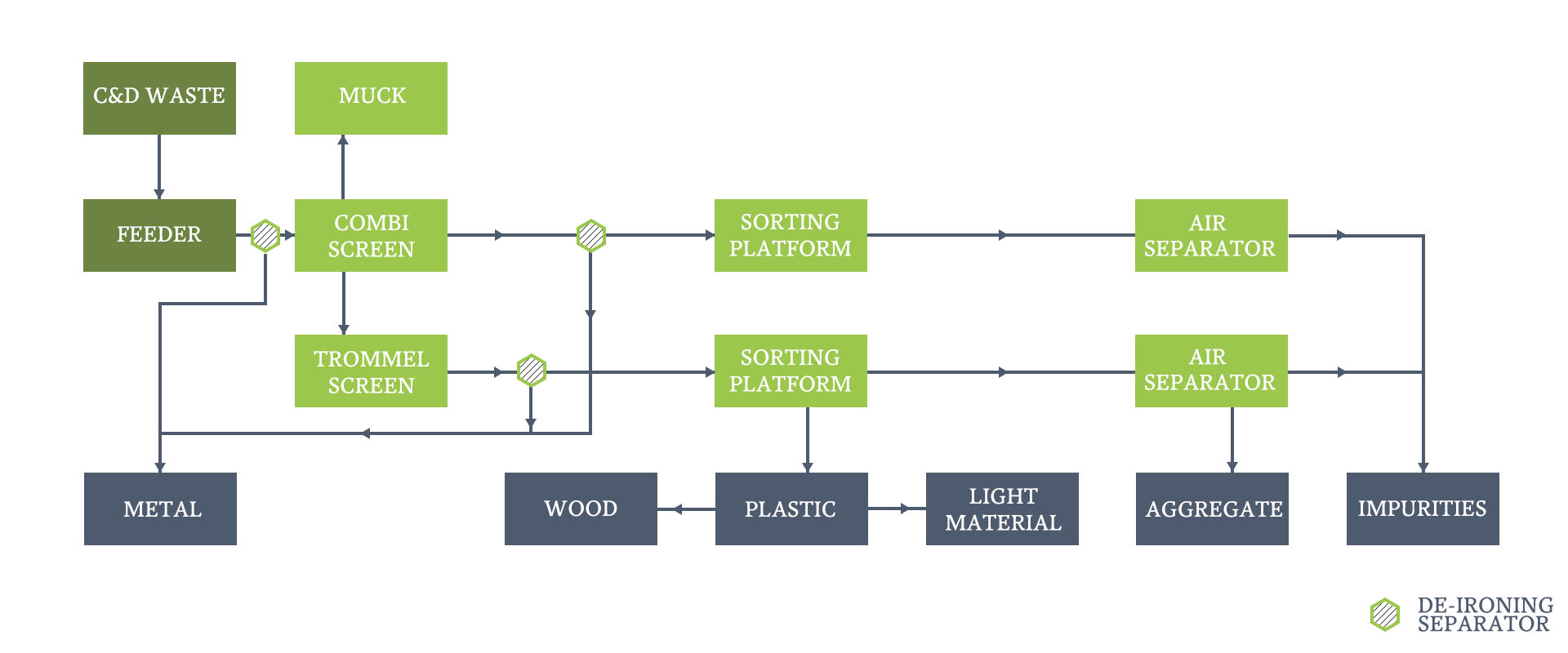

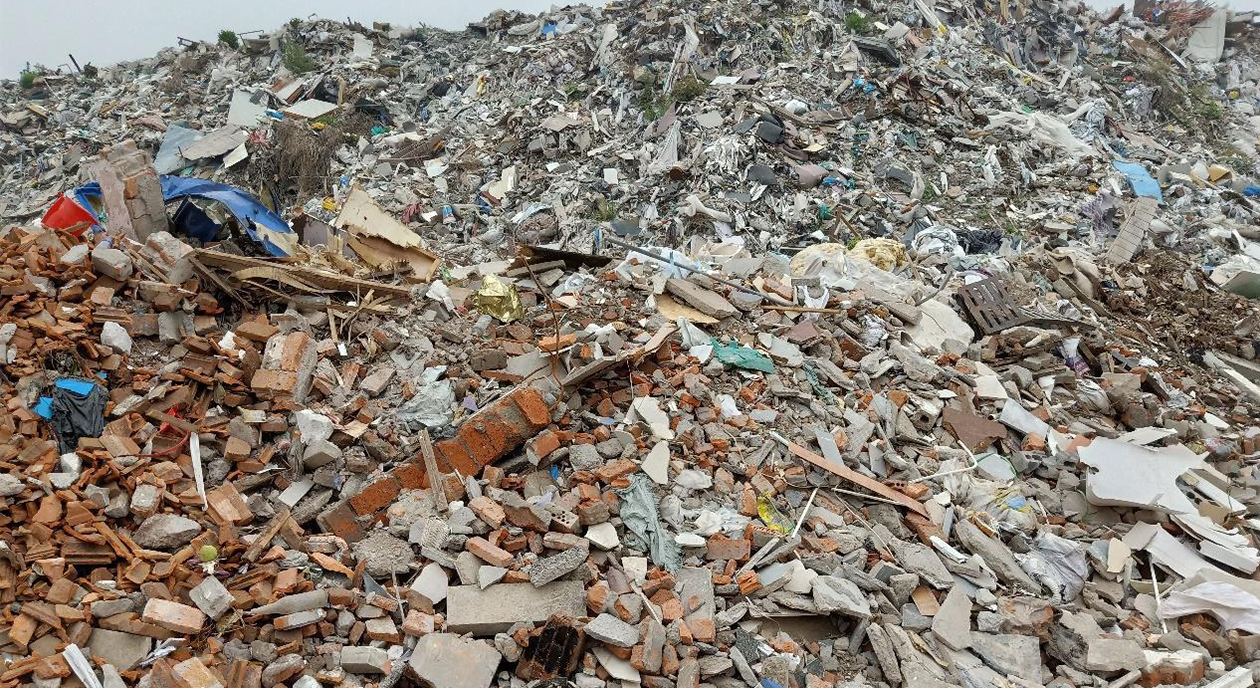

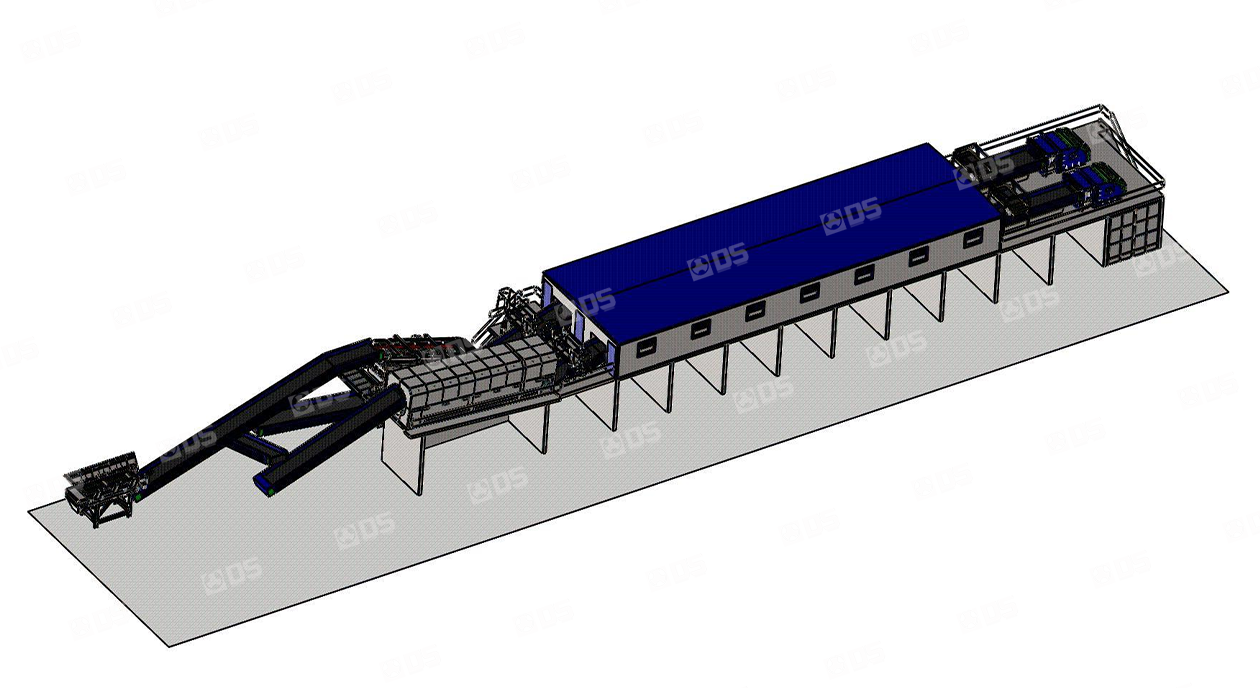

STATIONARY CDW SEPARATION SYSTEM
NOTE: This is NOT a Process Flow Diagram

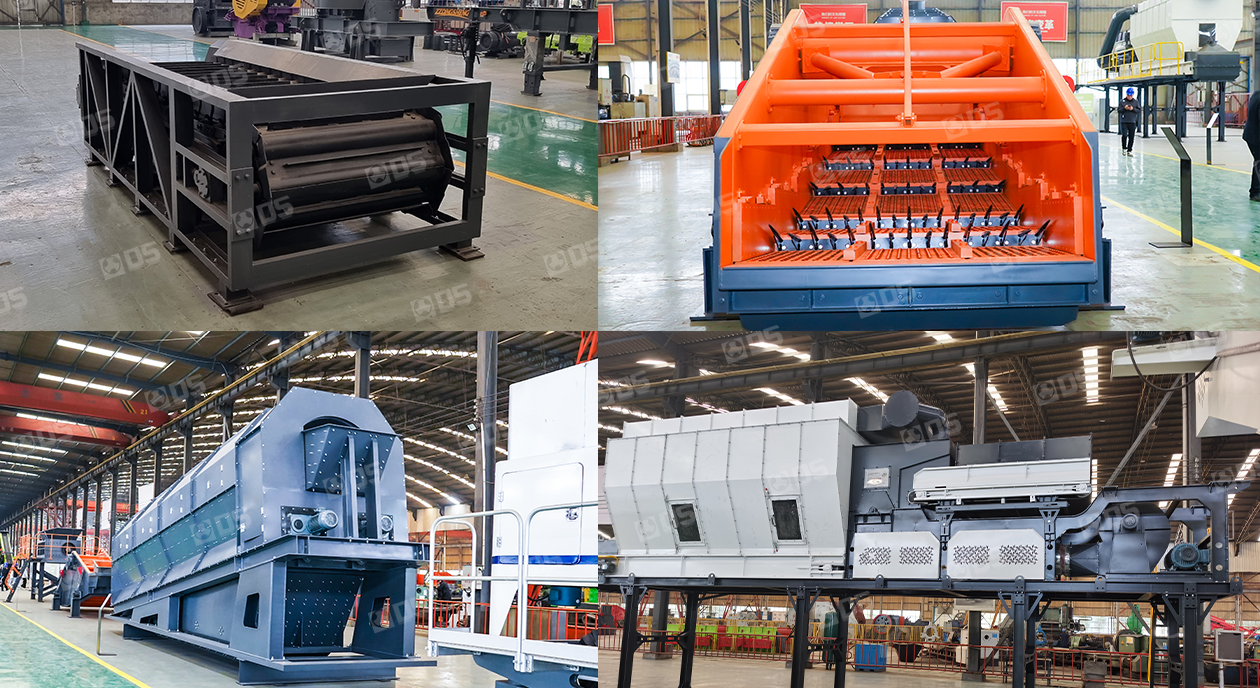

First, the construction and demolition waste would be sent into the stepped combi screen by medium type apron feeder after de-ironing separator. The materials ≥150mm will enter into the manual sorting platform, while the parts under 150mm will then enter into the trommel screen. The muck ＜15mm will be screened out from both of the screens. The mixture coming out from trommel screen will also enter into the manual sorting platform to remove the wood, plastic and light materials etc. The left will be proceesed by air separators for removing the impurities. Finally, the inorganic mixed aggregates would be collected for other purposes.

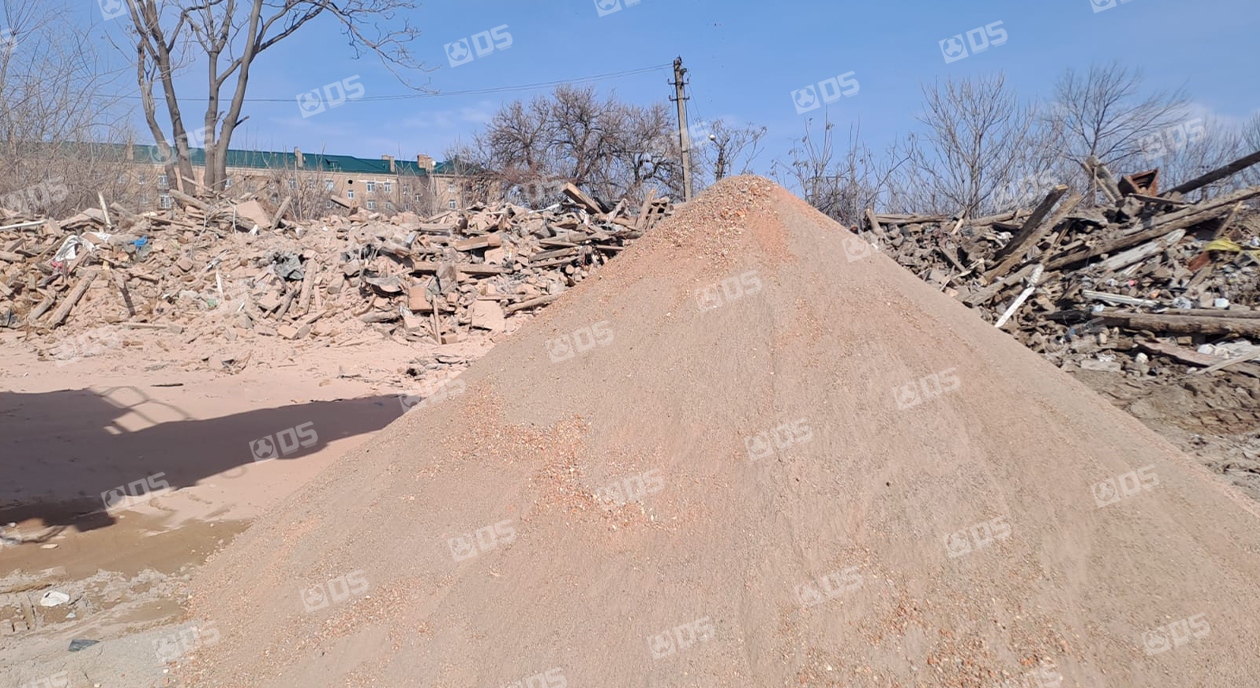

The finial product can be adjusted to your specific need.
The finial product can be adjusted to your specific need.
CDW SEPARATION SYSTEM
EXAMPLES

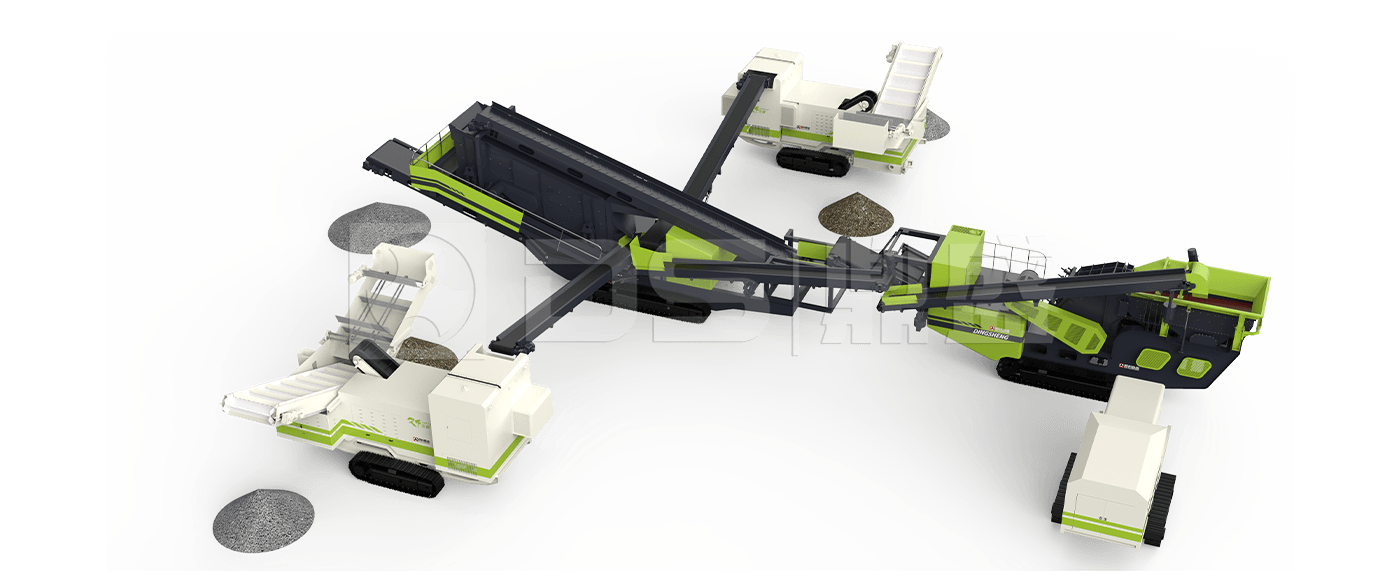

AGGREGATE RECYCLING MOBILE PLANT 200-250T/H
NOTE: This is NOT a Process Flow Diagram

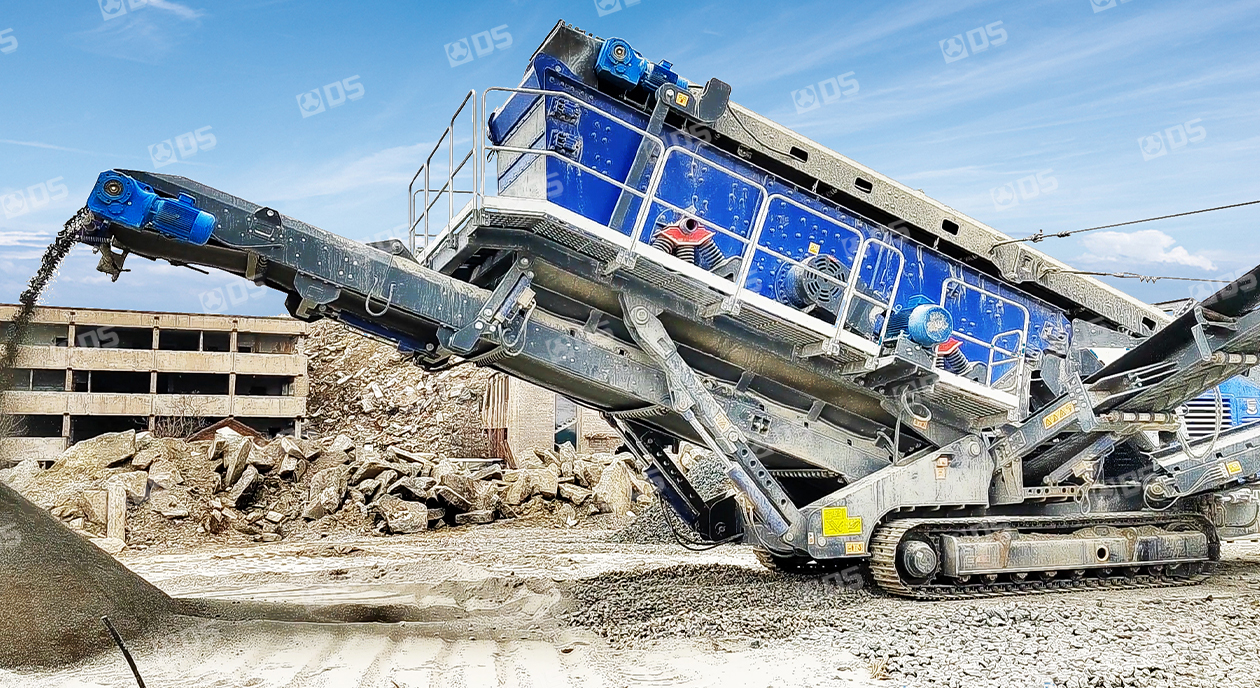

The aggregate of mobile C&D waste recycling plant is also known as mobile processing module, composed of crushing unit, screening unit with feeding and conveying system, and other auxiliary devices. The difference from the static C&D waste plant is that the core equipment of mobile plant are installed on crawler or wheel type chassis. The mobile C&D waste recycling plant has been widely used in various fields such as stone/ore crushing and construction waste recycling in China.

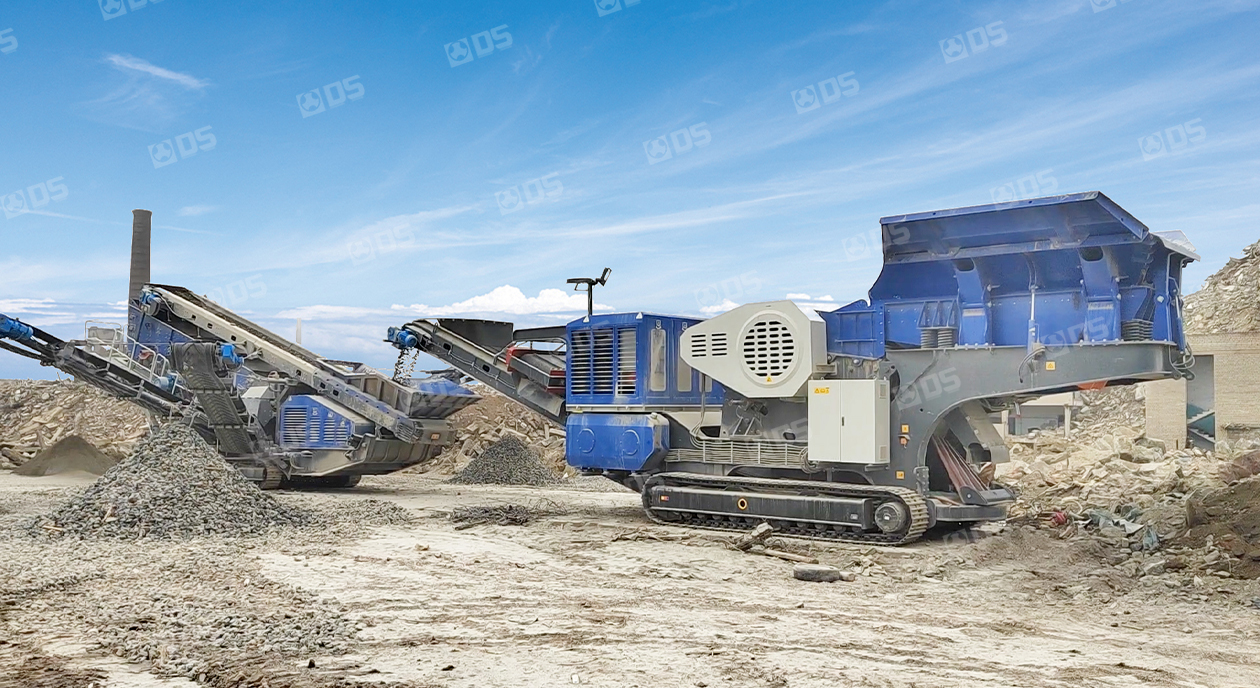

CASE OF MOBILE PLANT
RUSSIA 200-250T/H

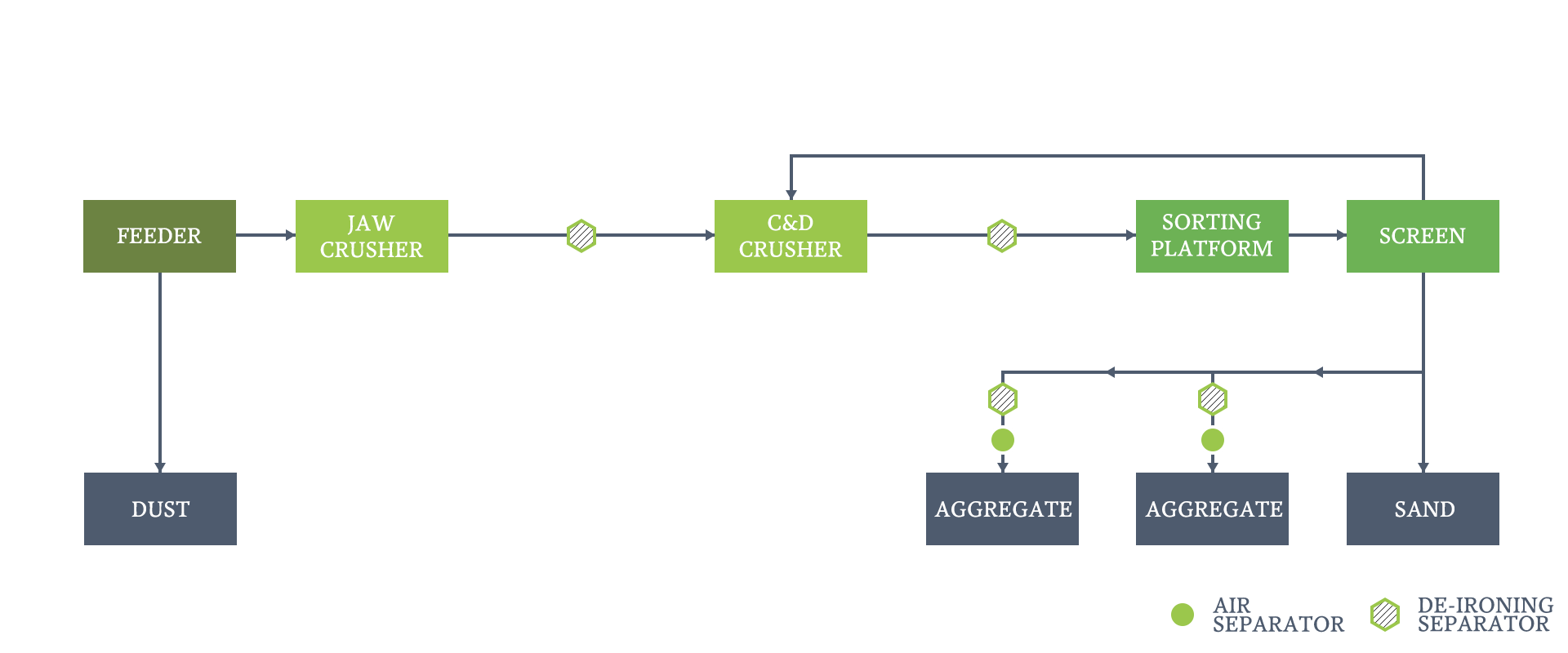

CDW RECYCLING STATIONARY PLANT 150-200T/H
NOTE: This is NOT a Process Flow Diagram
First, the collected construction and demolition waste like concrete, bricks and tiles etc. would be sent into the vibrating feeder, which can remove the dust directly, then the coarse materials are sent to primary crushing and de-ironing. Next, the material is sent to secondary crushing, being sorted and screened in the closed circuit of the process. The crushed inorganic mixed aggregates can also be divided into different particle size for different purposes after third impurities removing. For example, in a static C&D waste processing complete plant in China, the C&D waste is processed into 0～5mm, 6～10mm, 10-20mm, 20-30mm gradation aggregates for multiple applications.
The finial product can be adjusted to your specific need.
The finial product can be adjusted to your specific need.

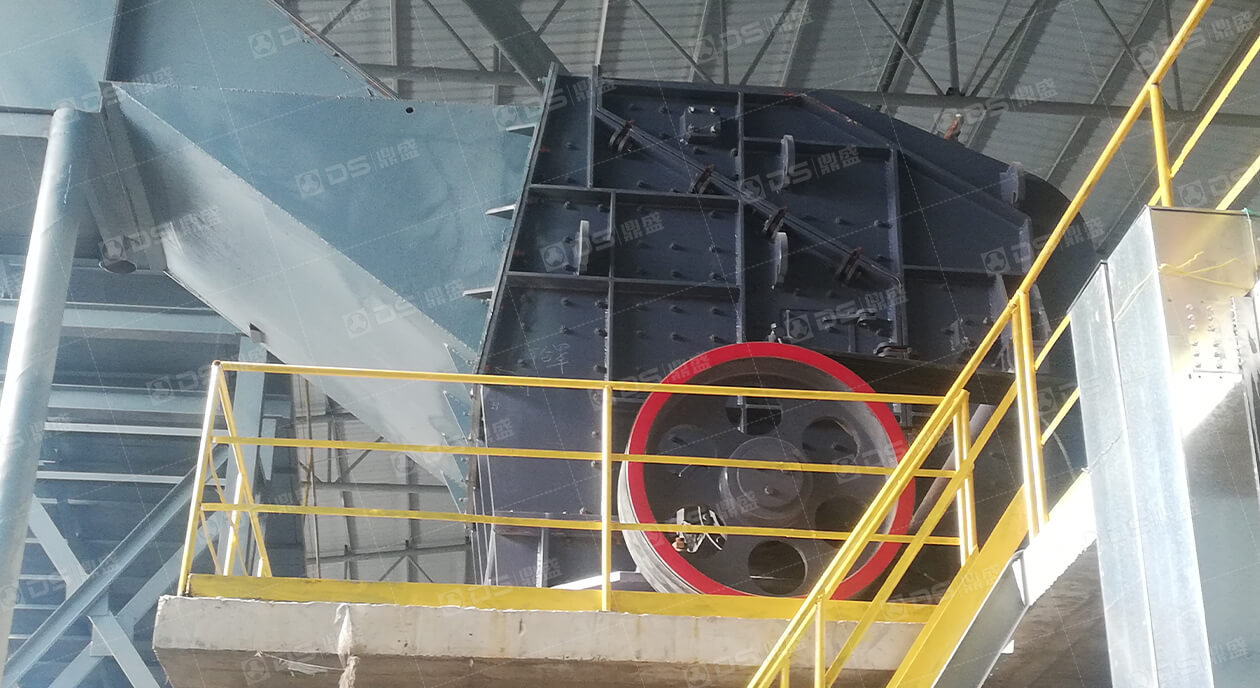

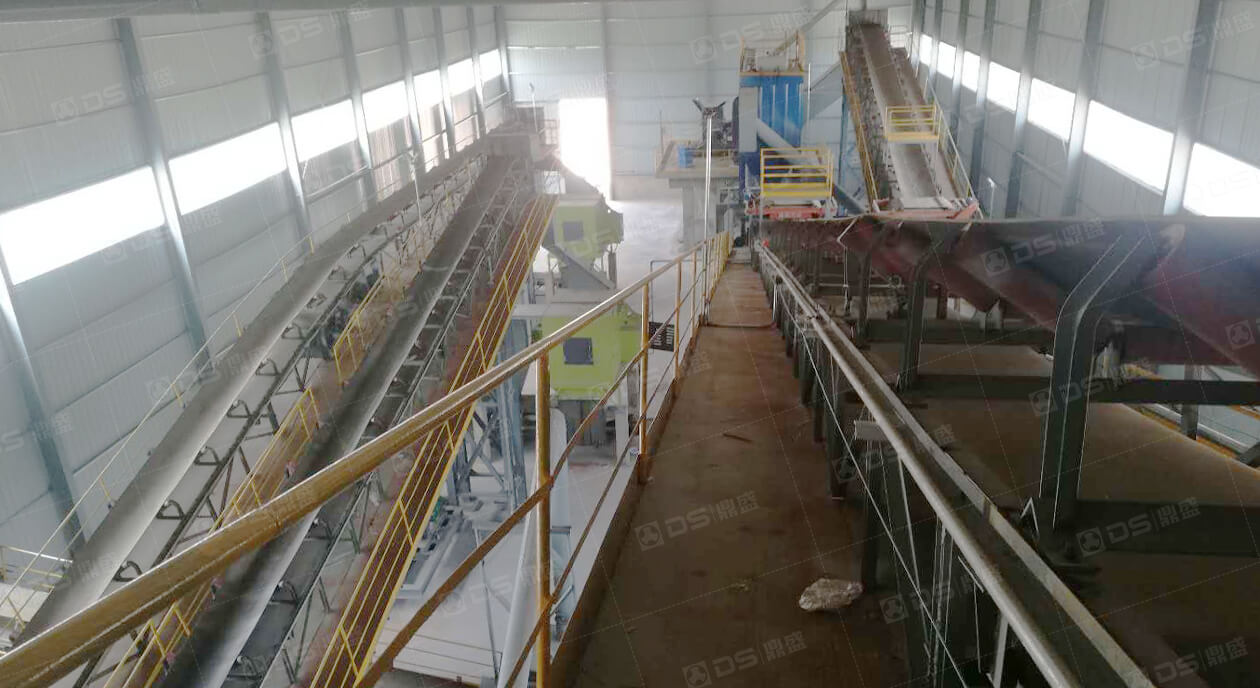

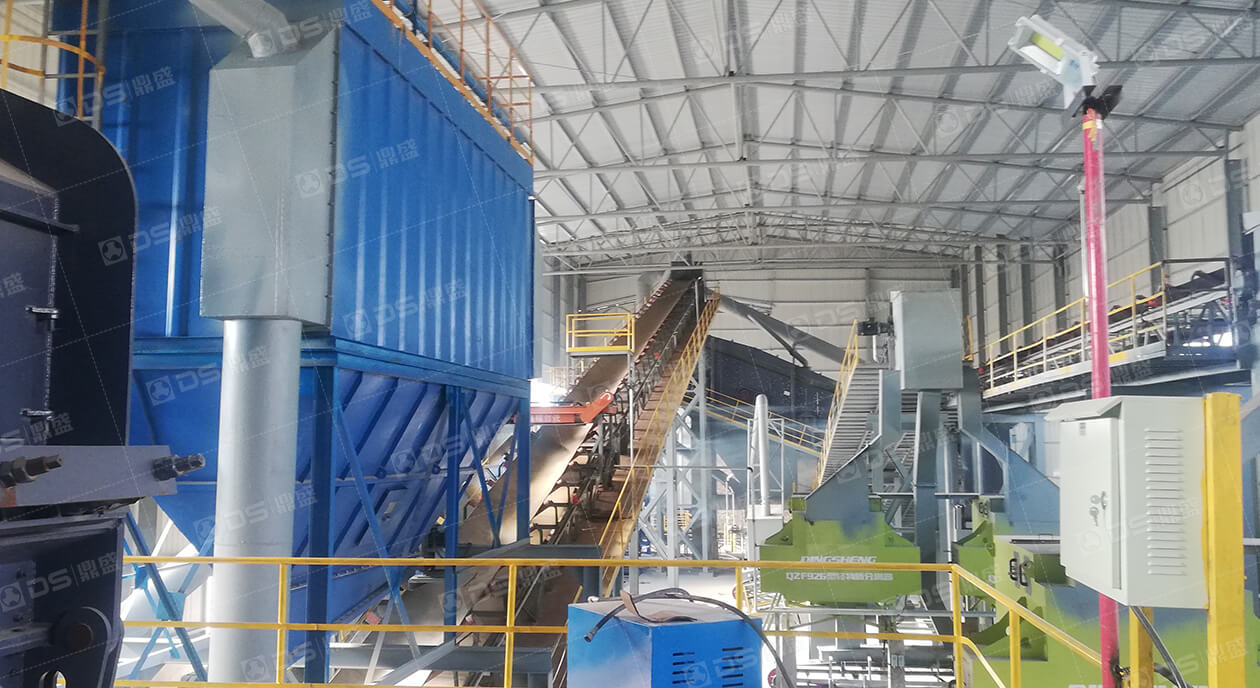

CASE OF STATIONARY PLANT
ZAMBIA 150-200T/H

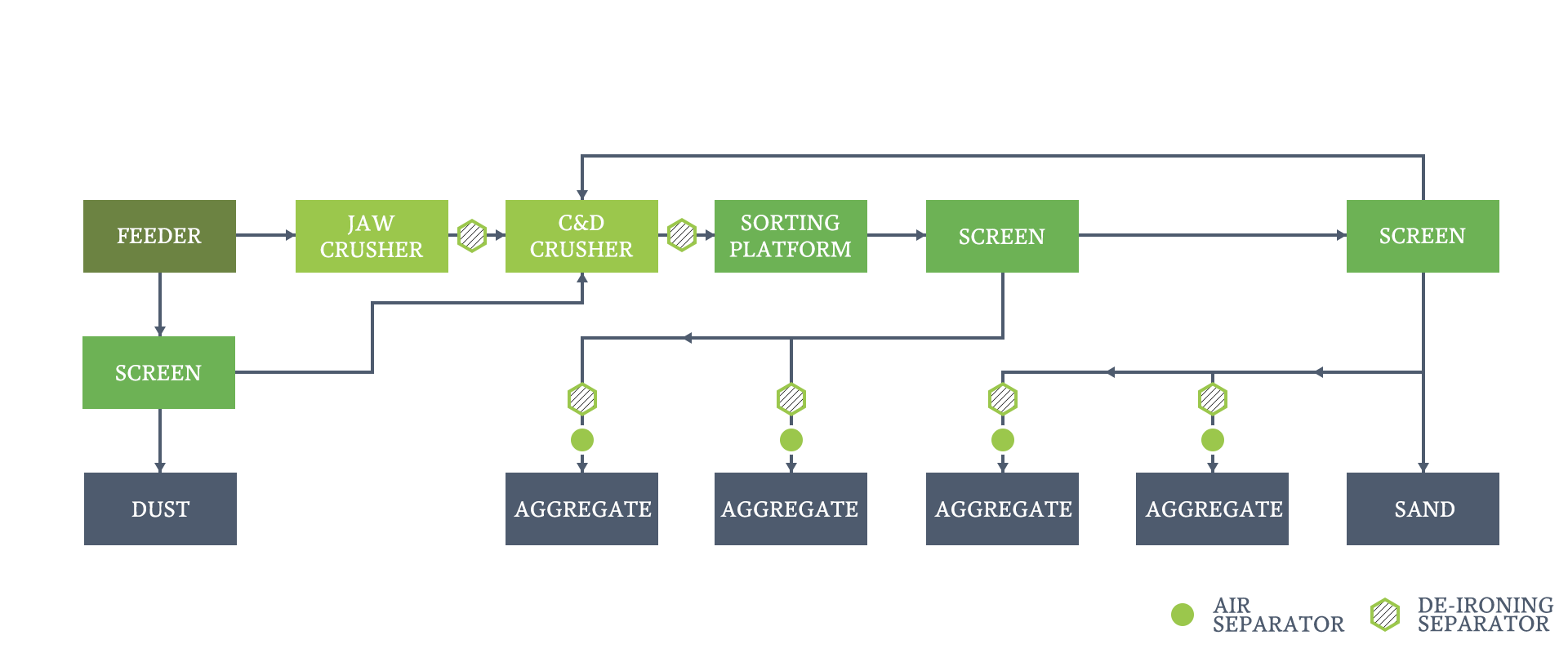

CDW RECYCLING STATIONARY PLANT 250-300T/H
NOTE: This is NOT a Process Flow Diagram
First, the collected construction and demolition waste like concrete, bricks and tiles etc. would be sent into the vibrating feeder and screen, which can remove the dust directly, then the coarse materials are sent to primary crushing and de-ironing. Next, the material and the underflow from first screen is sent to secondary crushing and de-ironing, sorted and screened twice in the closed circuit of the process. The crushed inorganic mixed aggregates can also be divided into different particle size for different purposes after third impurities removing. For example, in a static C&D waste processing complete plant in China, the C&D waste is processed into 0～5mm, 6～10mm, 10-20mm, 20-30mm gradation aggregates for multiple applications.
The finial product can be adjusted to your specific need.
The finial product can be adjusted to your specific need.

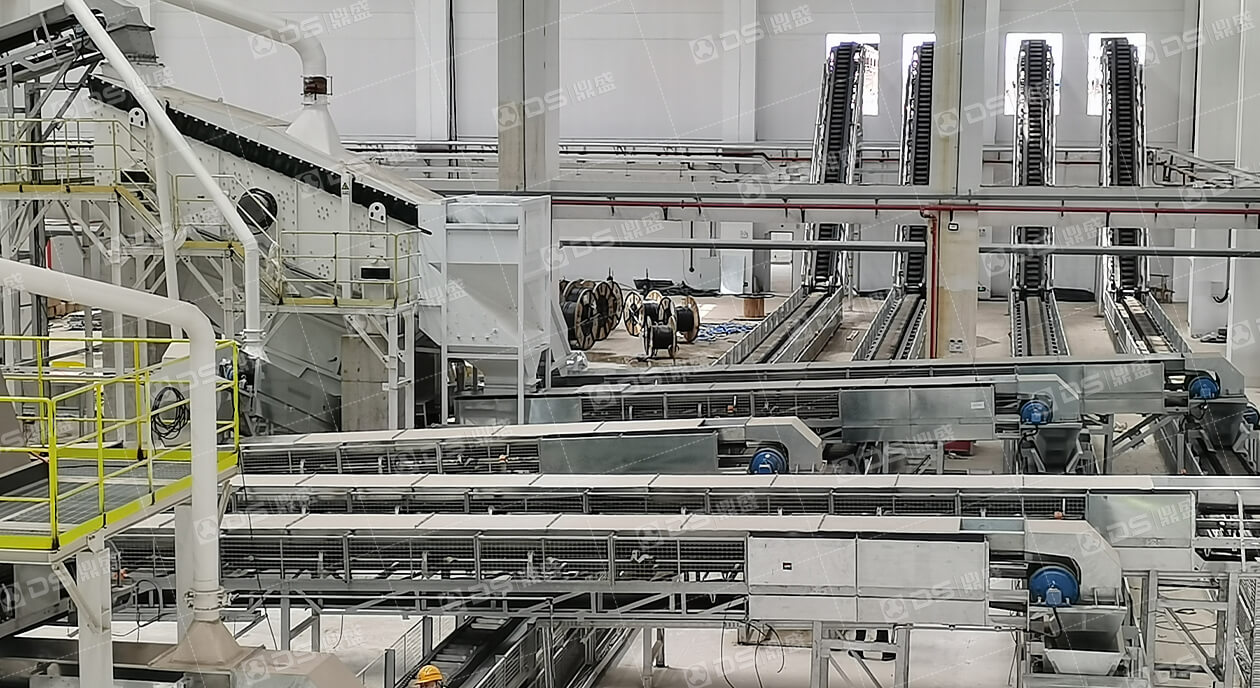

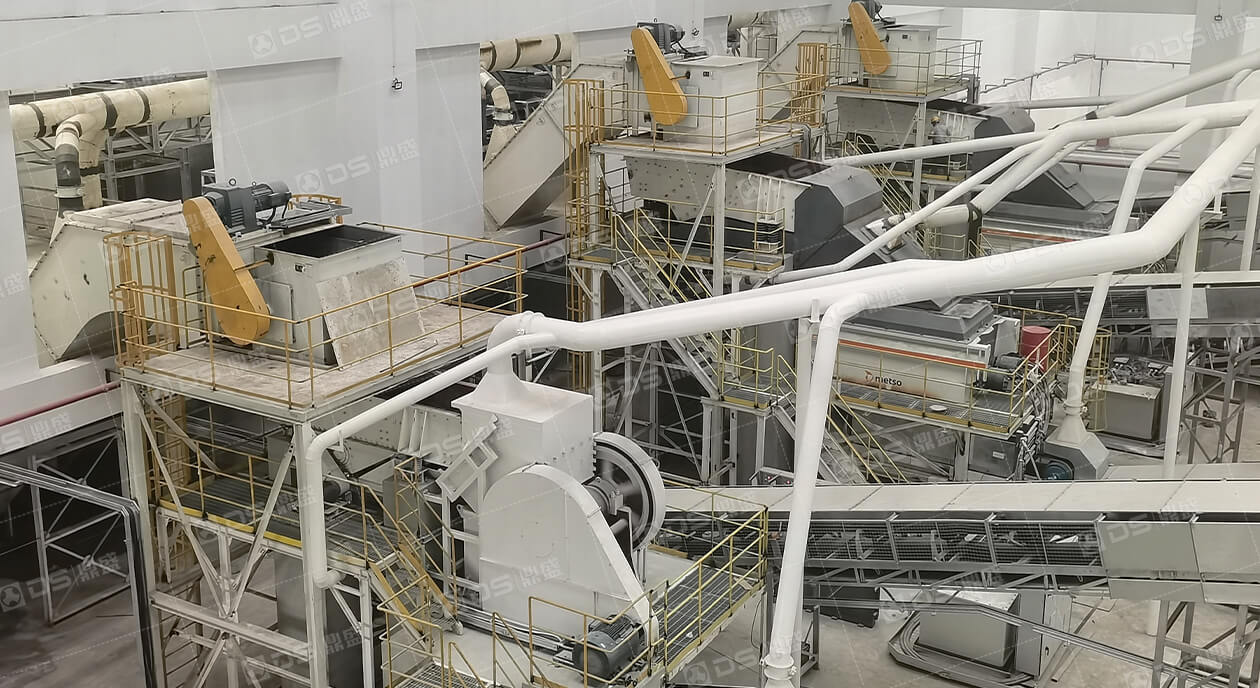

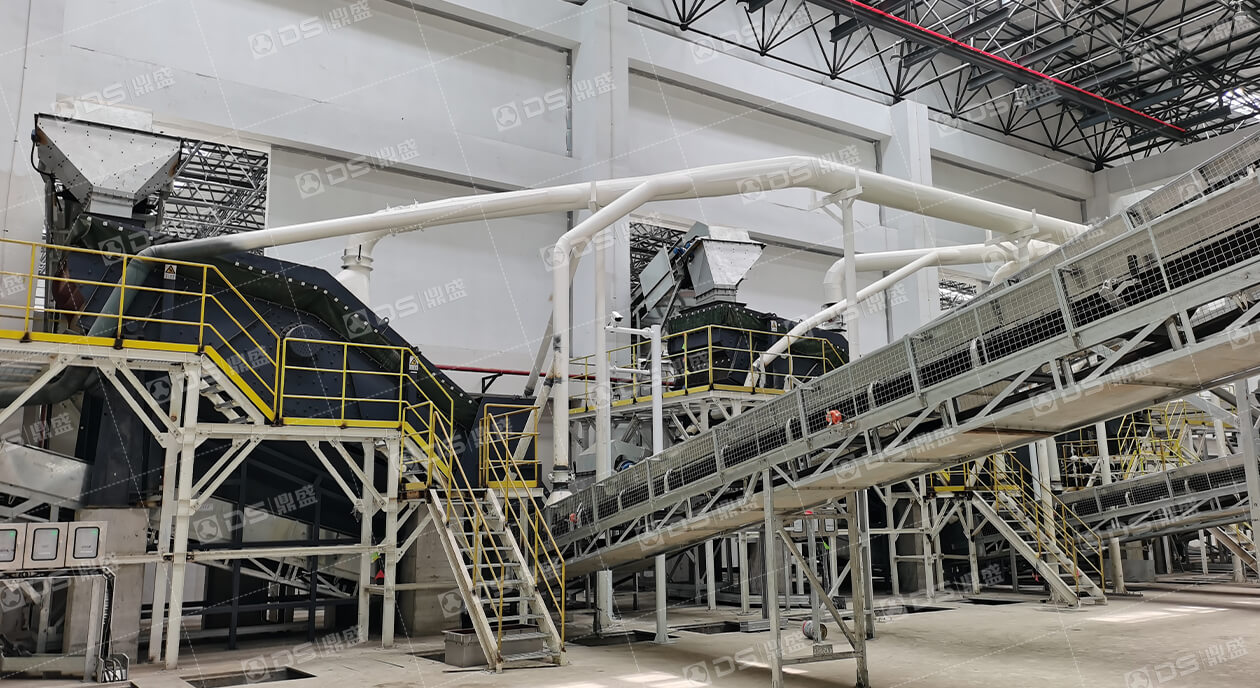

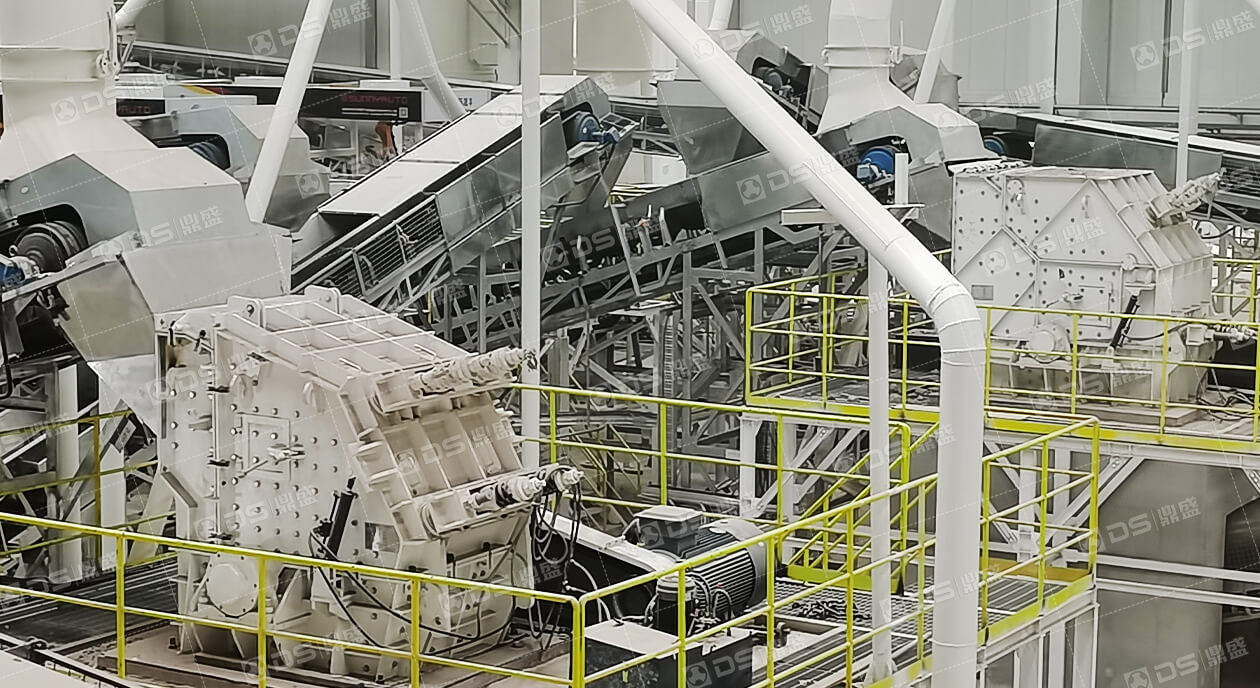

CASE OF STATIONARY PLANT
SHANGHAI 250-300T/H
